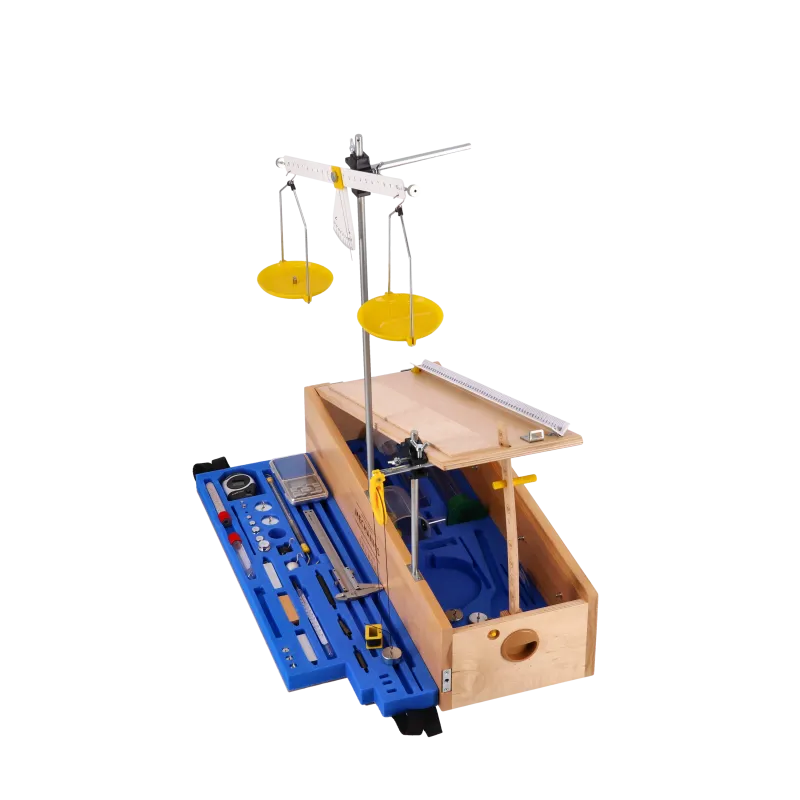

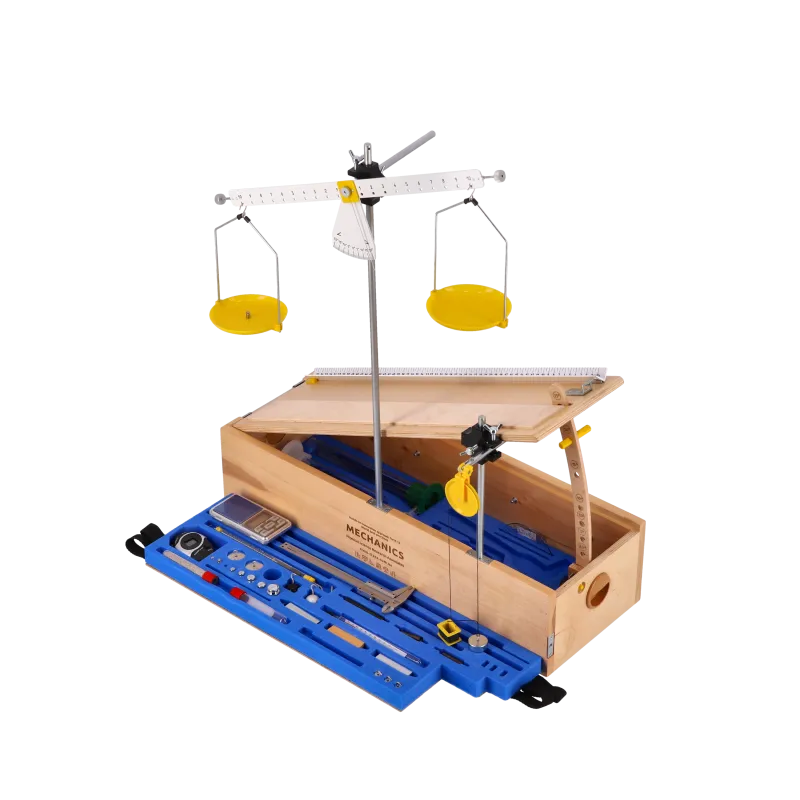

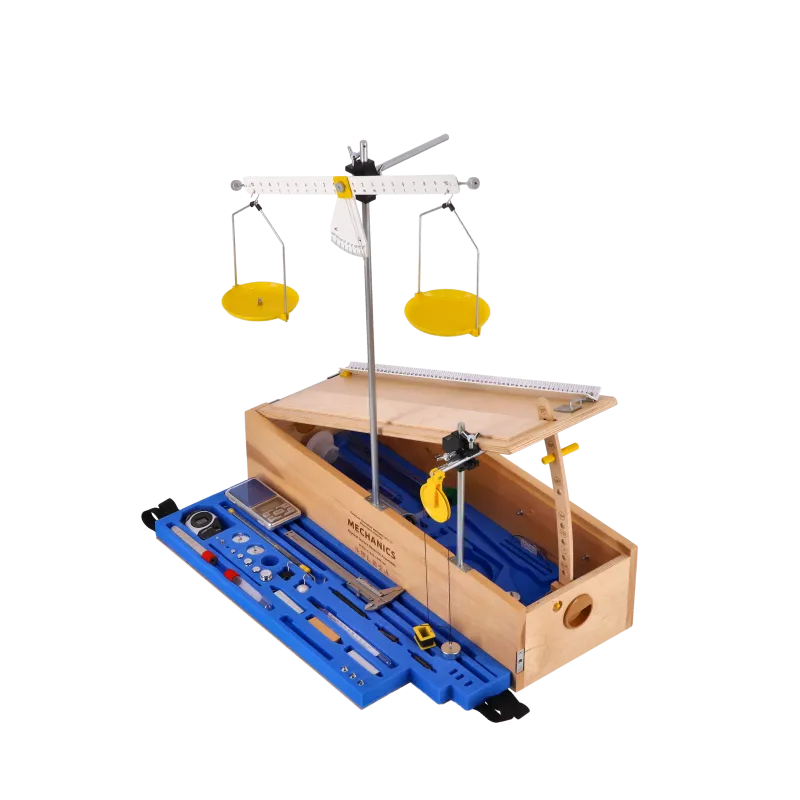

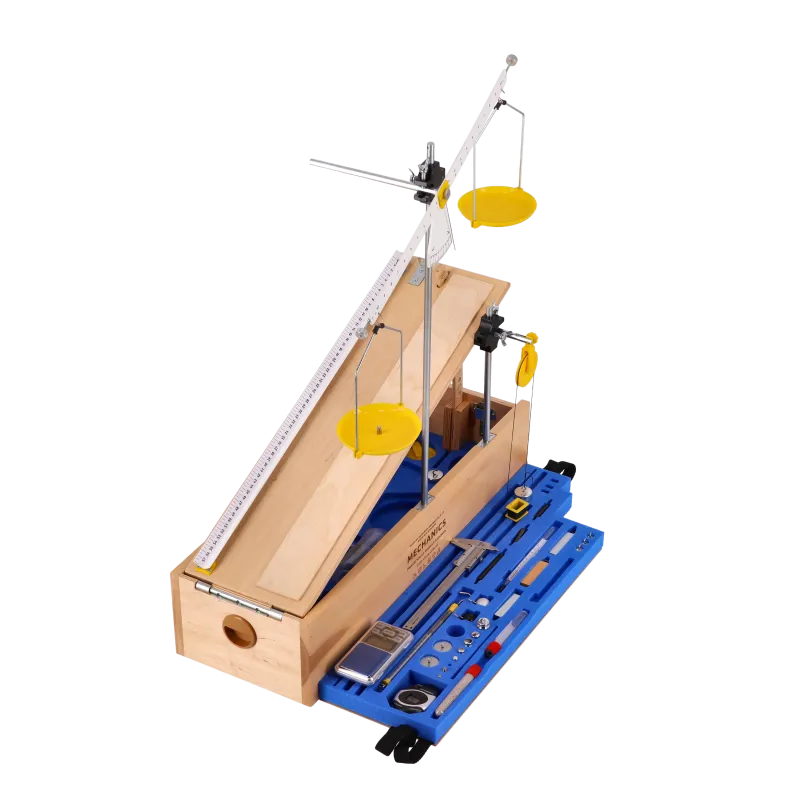

Mechanics Laboratory Kit

This kit supports the following laboratory experiments:

1. Determination of the scale value of a measuring instrument
2. Measurement of the volume of solids, liquids, and granular materials
3. Measurement of the dimensions of small objects
4. Measurement of the period, rotational frequency, and linear speed of circular motion
5. Investigation of the oscillations of a simple pendulum
6. Measurement of mass by weighing
7. Determination of the density of solids and liquids
8. Investigation of elastic properties of materials
9. Determination of the coefficient of sliding friction
10. Study of the conditions for floating of bodies
11. Study of the equilibrium of a lever
12. Determination of the efficiency of an inclined plane
13. Determination of acceleration in uniformly accelerated motion
14. Measurement of forces
15. Study of equilibrium of a body under the action of several forces
16. Measurement of average speed
17. Determination of average acceleration in uniformly accelerated motion
18. Investigation of circular motion
19. Study of horizontal projectile motion
20. Measurement of the stiffness (spring constant) of an elastic body
21. Determination of the coefficient of friction
22. Determination of the centre of mass of plane figures
23. Investigation of elastic collision between two bodies
24. Study of the law of conservation of mechanical energy
25. Construction of a pendulum and measurement of its period
26. Investigation of oscillations of a mass–spring system

1. Vernier caliper — 1 pc
2. Dynamometer — 1 pc
3. Overflow vessel — 1 pc
4. Set of weights — 1 set
5. Set of hooked weights — 3 sets
6. Pulley with axle — 1 pc
7. Springs — 2 pcs
8. Equal-volume bodies — 3 pcs
9. Graduated beaker, 100 ml — 1 pc
10. Measuring cylinder — 1 pc
11. Disassemblable balance — 1 pc
12. Assembly accessories — 1 set
13. Balance beam axle — 1 pc
14. Clamping nut for balance — 1 pc
15. Adjustment nuts for balance — 2 pcs
16. Balance pan hangers — 2 pcs
17. Lever — 1 pc
18. Rod, 600 mm — 1 pc
19. Pointer — 1 pc
20. Cross coupling — 2 pcs
21. Balance pans — 2 pcs
22. Fixing screws — 3 pcs
23. Stopwatch — 1 pc
24. Steel ball — 1 pc
25. Nylon cord — 5 m
26. Electronic balance (capacity ≥ 0.2 kg, resolution 0.1 g, platform size ≥ 80 mm) — 1 pc
27. Transport and storage case with inserts — 1 pc

1. Runway (grooved track) — 1 pc
2. Protractor arc — 1 pc
3. Rotational motion disk — 1 pc
4. Rod, 250 mm — 1 pc
5. Thermometer — 1 pc
6. Flat bodies of irregular shape — 3 pcs
7. Rod, 240 mm — 1 pc
8. Graduated cylinder, 100 ml — 1 pc
9. Graduated beaker, 250 ml — 1 pc
10. Fixing clamp — 1 pc
11. Wooden block with rubber pad and three weight holes (tribometer) — 1 pc
12. Test tube with stopper — 1 pc
13. Test tube with stopper and sand — 1 pc
14. Balance scale — 1 pc
15. Pulley with axle — 1 pc
16. Metal ball with hook (aluminium) — 1 pc
17. Lever — 1 pc
