Laboratory kit "Electronics"

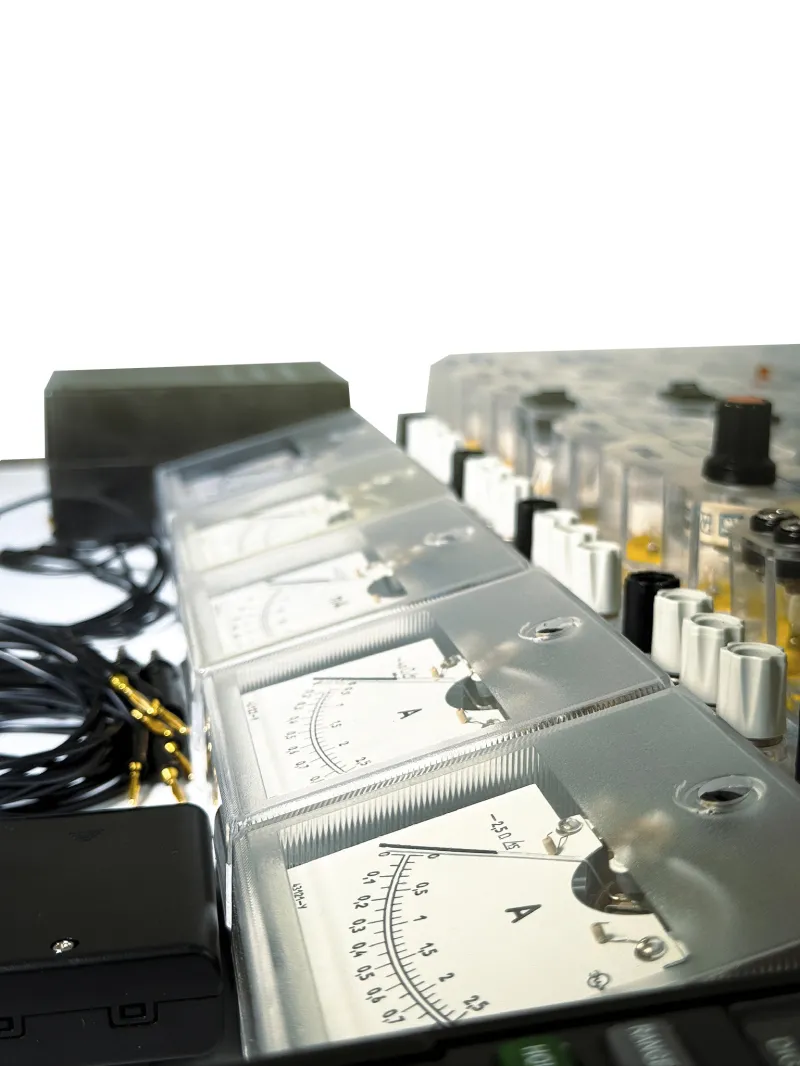

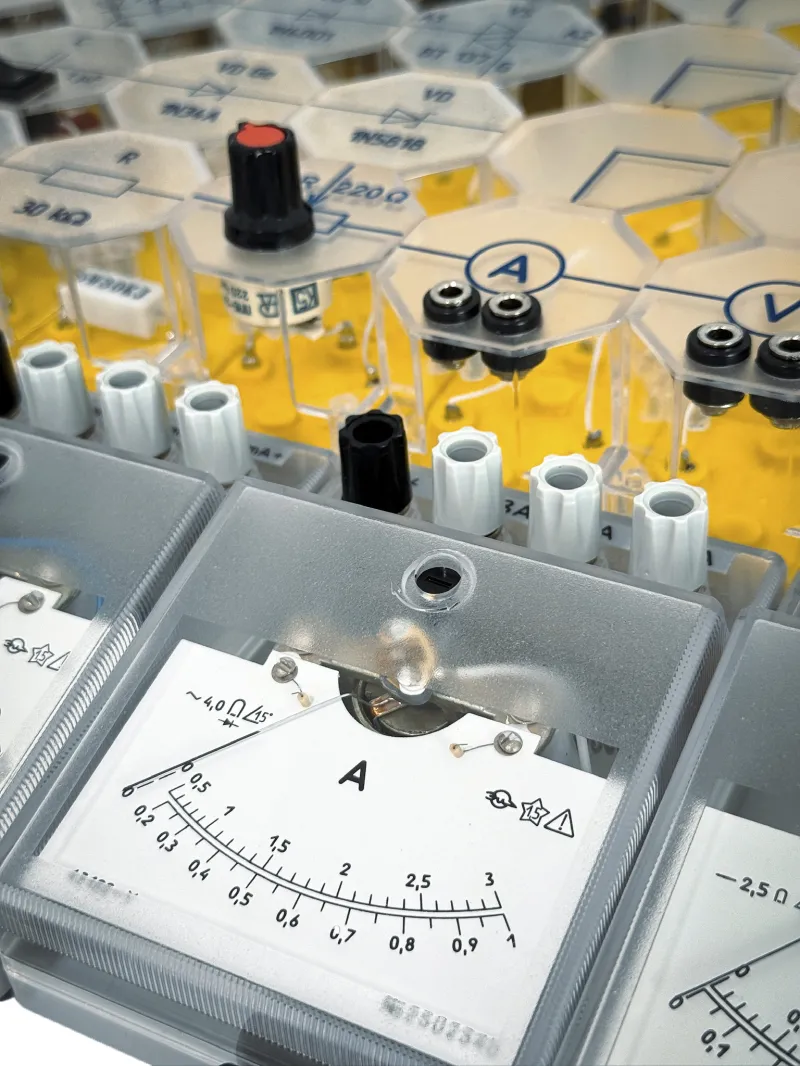

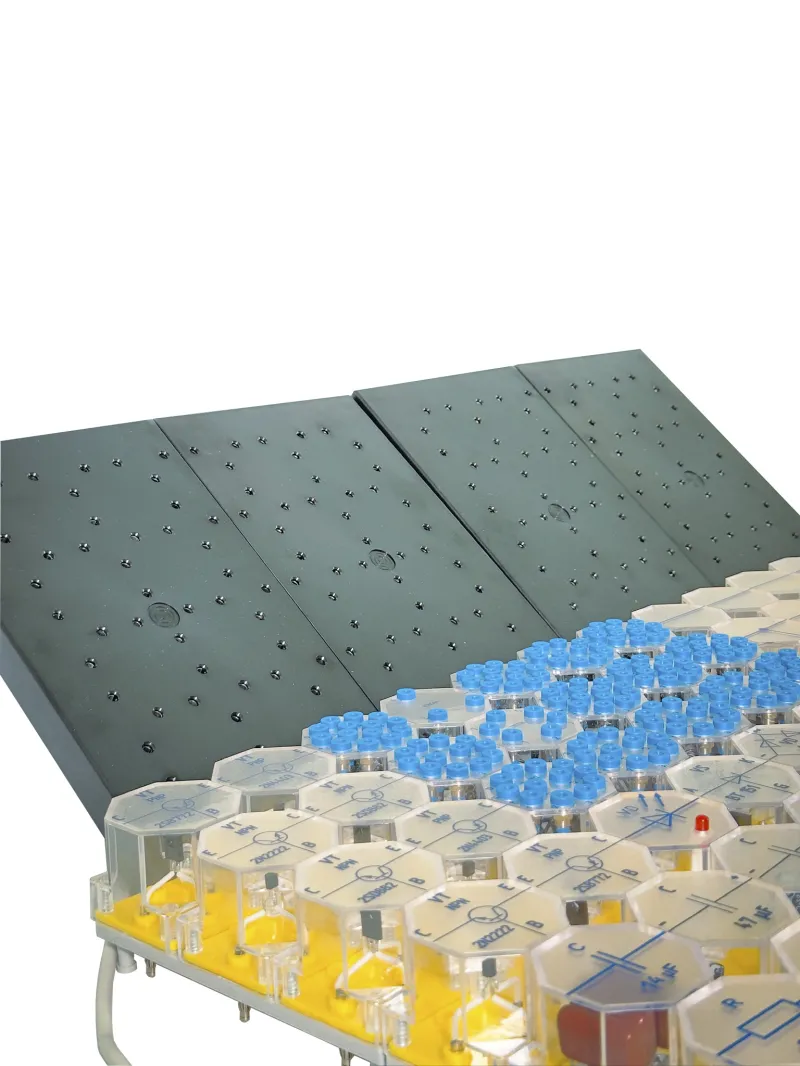

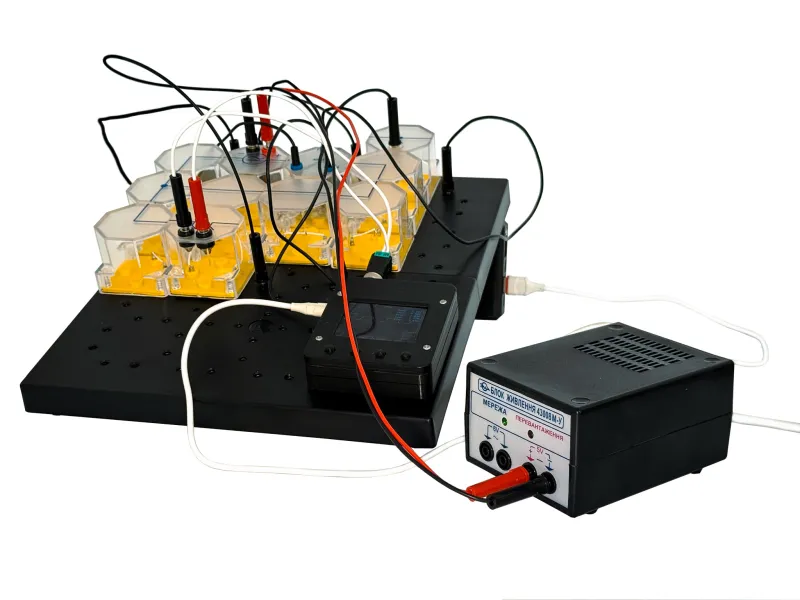

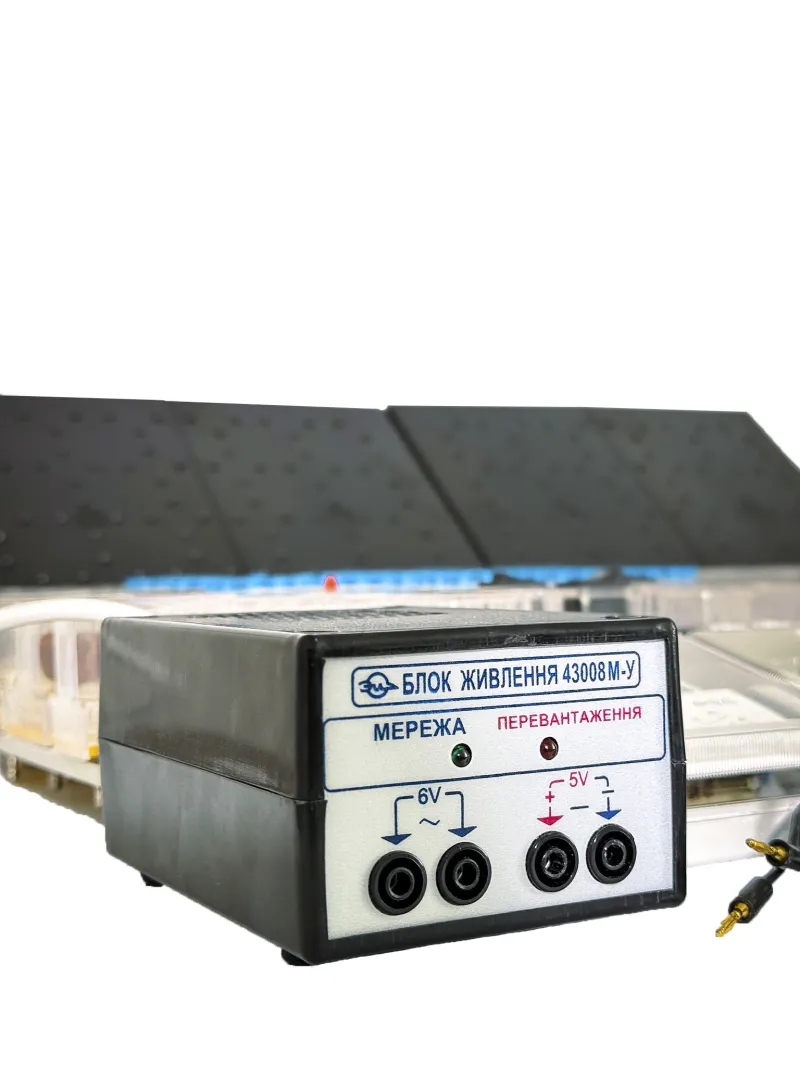

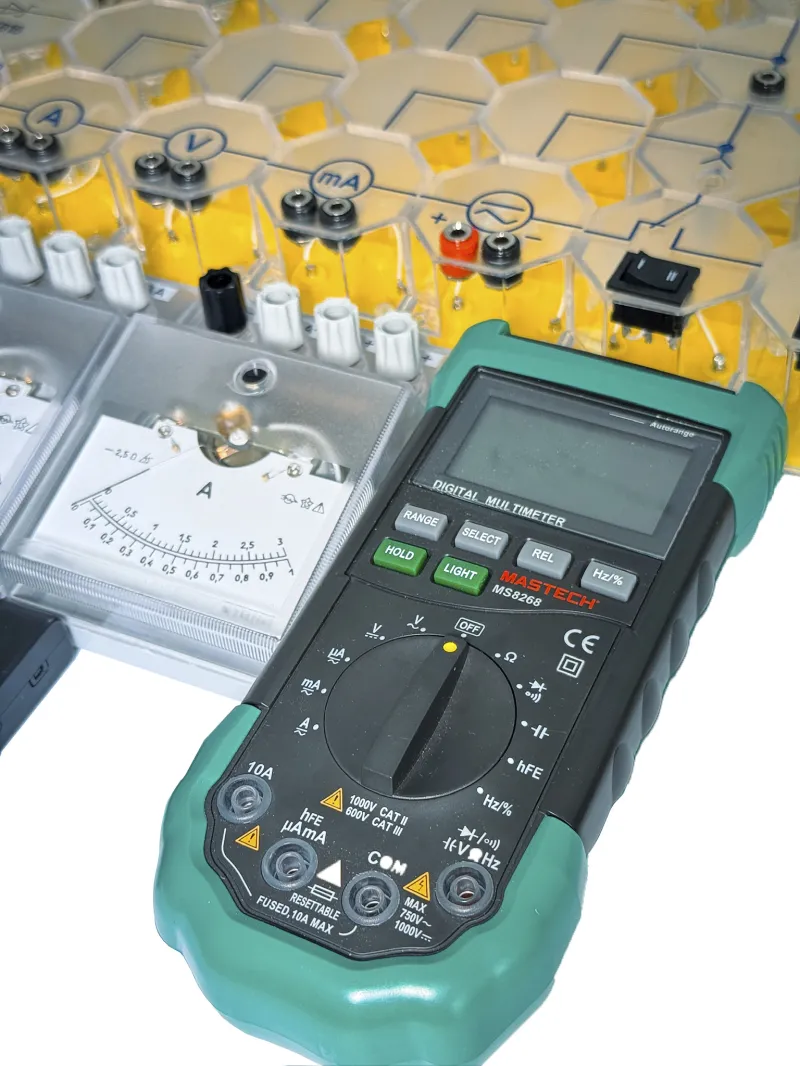

The set comes in 4 wooden cases and is equipped with a variety of analogue and digital devices. Voltmeters of alternating and constant voltage, ammeters of alternating and constant current, as well as milliammeter. The set also includes a digital multimeter, a life unit and an oscilloscope. The kit includes two dialing fields for assembling circuits, a set of connecting modules, a set of modules for connecting vibration devices and living units, a set of connecting wires.

Item number: 16244
Price: £
order
The laboratory set “Electronics” is available at the initial deposits for learning courses directly: 1. Promislova electronics 2. Basics of electronics 3. Computer electronics 4. Automation 5. Electrical vibration The set comes in 4 wooden cases and is equipped with a variety of analogue and digital devices. Voltmeters of alternating and constant voltage, ammeters of alternating and constant current, as well as milliammeter. The set also includes a digital multimeter, a life unit and an oscilloscope. The kit includes two dialing fields for assembling circuits, a set of connecting modules, a set of modules for connecting vibration devices and living units, a set of connecting wires.
The electronics set consists of the following modules:

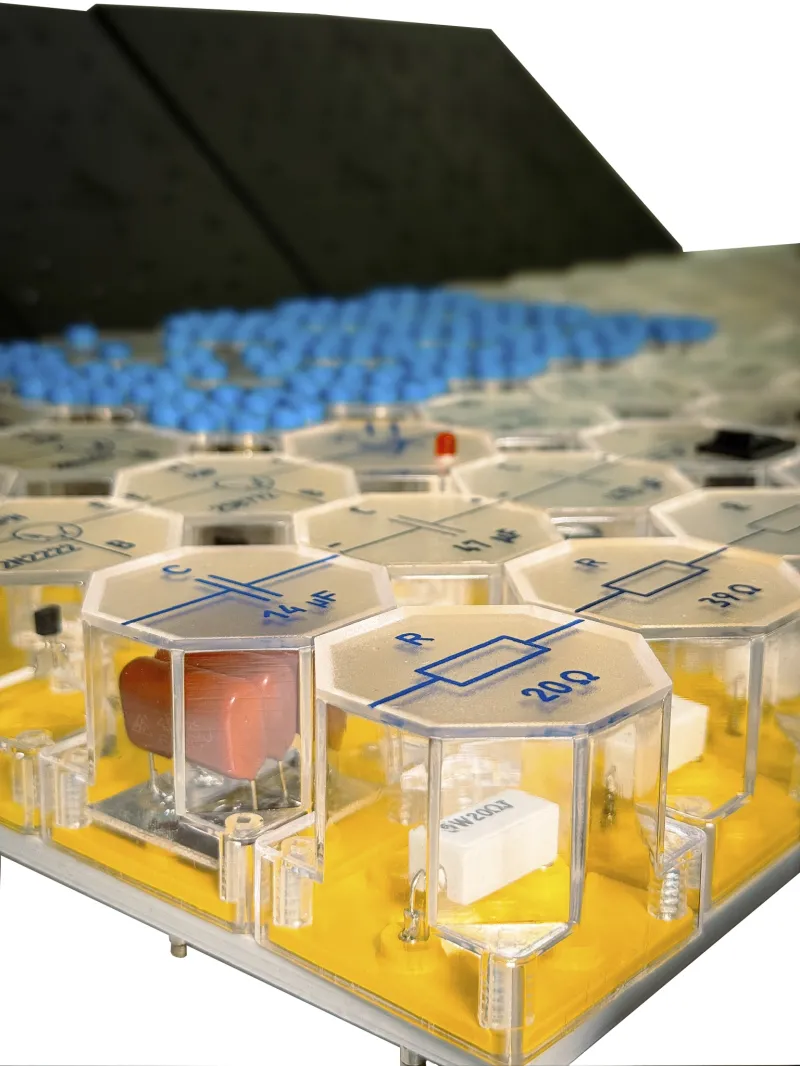

  1. Modules of passive elements
    1. 39 Ohm resistor
    2. 200 Ohm resistor
    3. 510 Ohm resistor
    4. 1kOhm resistor
    5. Resistor 6.8/10 kOhm
    6. 30 kOhm resistor
    7. Rheostat 47 Ohm
    8. Potentiometer 220 Ohm
    9. Potentiometer 1 kOhm
    10. Capacitor 0.01/0.1 µF
    11. Capacitor 1/10 µF
    12. Electrolytic capacitor 47 uF – 16 V
    13. Electrolytic capacitor 470 µF – 50 V
  2. Modules of conductor elements:
    1. Transistor pnp emitter on the right side 2N4403
    2. Transistor pnp emitter on the left side 2N4403
    3. Transistor npn emitter on the right side 2N2022
    4. Transistor npn emitter on the left side 2N2022
    5. Transistor pnp emitter on the right side 2SB772
    6. Transistor pnp emitter on the left side 2SB772
    7. Transistor npn emitter on the right side 2SD882
    8. Transistor npn emitter on the left side 2SD882
    9. Germanium diode
    10. Silicon diode
    11. Schottky diode
    12. Vipryamlyach bridge 1 A 100 V
    13. Single light indicator (LED)
    14. Thyristor
  3. Modules of logical elements:
    1. Surgical support AD8541
    2. Operational booster LM358
    3. 74LS42 decoder
    4. 4 elements 2І-НІ 74LS00
    5. 4 elements 2І 74LS08
    6. 4 elements 2ABO-НІ 74LS02
    7. Multiplexer 8-3² 74LS251
    8. Decoder 3²-7 74LS47
    9. J-K trigger 74LS113
    10. R-S trigger 74LS279
    11. 4-bit medical device 74LS293
    12. Encoder 8-3² 74LS348
    13. D-trigger 74LS74
    14. Universal disinfectant 74LS161
    15. Universal register 74LS194
    16. Decoder 3²-8 74LS138
    17. 4 elements 2І-НІ 74AC04PC
